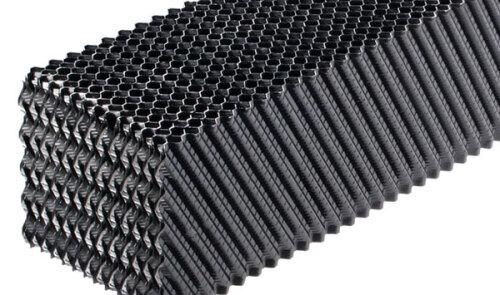

Brentwood CF1200 PVC Fill Pack
CF1200 has been designed for use in factory-assembled counterflow towers in light industrial applications. CF1200 splits the water stream ten times in an 11.8-inch (300 mm) vertical path, balancing high thermal performance and low pressure drop.
Product
Sheet Spacing mm
Surface Area m2/m3
Flute Angle Degrees
Pack Sizes Minimum D/W/L mm
Pack Sizes Maximum D/W/L mm
Pack Sizes Standard D/W/L mm
Nominal Gauge mm
Dry Weight kg/m3
CF1200
11.7
226
30
D: 100
W: 153
L: 305
W: 153
L: 305
D: 300
W: 305
L: 3048
W: 305
L: 3048
D: 300
W: 305
L: 1220, 1829, 2439, 3048
W: 305
L: 1220, 1829, 2439, 3048
0.20, 0.25, 0.38
36.8, 43.2, 60.9
