Brentwood CF Ultra PVC Drift Eliminator

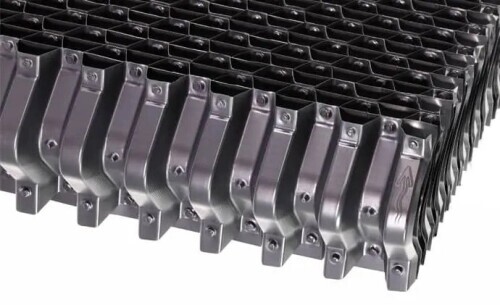

Brentwood's AccuPac® Counterflow Cellular Drift Eliminators are made from an alternating pattern of corrugated and wave PVC sheets, designed to create closed cells. This closed-cell design provides the highest surface area for capturing droplets within a specific volume. The latest generation of these cellular Drift Eliminators is specially engineered for counterflow applications, optimising drift removal efficiency while minimising pressure drop.
CFUltra is the highest performing Drift Eliminator in the industry, with a drift rating 20-50% better than any other product on the market. Its performance has been independently tested and verified by a CTI Drift multi-test agency, yielding drift loss results of 0.0004%, down to 0.00025%.
Features & Benefits
- Patented Mechanical Assembly technology yields glue-free packs.
- Modules nest with adjoining modules, eliminating gaps between packs and providing seamless drift removal.
- Can be field cut for tight fits without sacrificing structural integrity.
- Able to span up to 6 feet, requiring fewer supports to minimise air blockage.
- Available in material meeting Cooling Technology Institute (CTI) Standard 136.
- UV-protected material is available with AccuShield technology.
Product
Cell Size
Dry Weight kg/m2
Depth mm
Width mm
Standard Lengths mm
Maximum Span mm
CF Ultra
21.8
8.0, 9.3, 12.0
133
305, 457
610, 914, 1219, 1524, 1829, 2438, 3048, 3658
1.2, 1.8
